Product Description

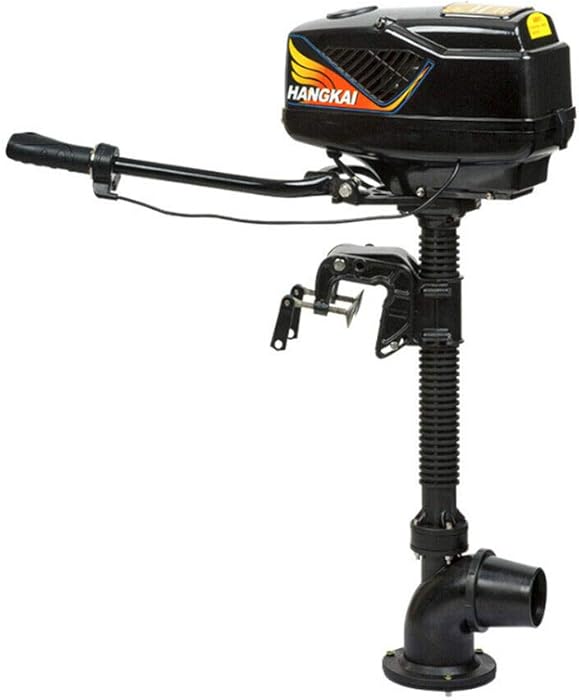

Model:48V 4.0JET PUMP

Rated power:1000W

Starting system:Accelerated start

Motor type:Brush-less motor

Rated Voltage:48V

rated current:21A

Control system:Tiller control

Max speed:15km/h

Overall L*W*H:365*220*920mm

N.W/G.W:10/11kgs

Packing size:95*42*29cm

Transom plate height:420mm

Battery model recommendation:30~120A safe storage battery,maximum power sustainable 2~8hours

(1) Strong power, Low energy consumption and Long service life because of the pure copper core brushless motor

(2) A muffler works for the motor to decrease the noise.

(3) Omni-directional rotary joystick

(4) Anti-winding function when Increase the thickening of the propeller

(5) Aluminum alloy suspension bracket: 90° rotatable bracket, more stable and durable.

(6) Easy to install, the motor can be mounted on board without any tools

Our products are shipped from the United States, we will serve you 24 hours, if you have any questions, please contact us in time.

Technical Data:

Overall length: 92CM

Overall width: 36.5cm

Overall height: 22cm

Transom height: 42cm

Full throttle perating range: 4000-5000r/min

Maximum output: 2.5kw(3.5HP)

Speed: 20km/h(four people)

Type: 2-stroke

Ignition system: CDI system

Starting system: Manual start

Staring carburetion system: Choke start

Propeller mark: 7-1/45-A(inch)

The engine and the propeller ratio: 2:1

Recommended fuel: Regular unleaded gasoline

Fuel to oil ratio: 30:1

Gear ratio: 27/13

Maximum speed: 10 km / h

Built-in fuel tank: 1.3L

Fuel consumption per hour: 1.5L

How to start the engine

(1) Plug the emergency turn-off cable plate in the switch groove.
(2) Plug the oil inlet plug for transferring fuel in the Fuel tank socket.
(3) Plug the oil outlet plug in the tubing socket of motor’s bottom.
(4) Spin and loose the venting screw in the fuel tank cap in a counter clockwise direction.
(5) Extrude the pump a few times until the area is full with fuel and the pump goes hard.
(6) Pull shift handle to neutral position.
(7) Turn throttle handle to “start” .
(8) When the engine cooled,puII out the choke valve to increase the concentration of combustible mixture gas and be more convenient and easier to start.
(9) PuII the starting handle, untiI the initiator of the claw and the flywheel plate mesh.
(10) After the engine runs,idle operate it for 2 to 3 minutes to warm up,then pull all the choke valve to the initial position.
(11) After the engine runs, check cooled water stablely flows or not. If there’s no water or stable flowing, turn off the engine and seek for the reason.
(12) During running, hang up the turn-off rope in your wrist or belt to ensure sailing safety.

Specifications:

Model: vertical axis, single cylinder, air cool, four stroke, hand pull/electric start

Max. Output: 6.0HP

Stroke: 4-stroke

Bore and stroke: 70x45mm

Displacement(ml): 173

Compression ratio: 7.8:1

Max power : 3.2KW/3600rpm

Max torque: 9N.m/2500rpm

Ignition system: transistor non-contact electronic ignition

Startup model: hand pull / electric start

Noise exhaust method: muffler out machine and emission directly

Outboard model: spline drivehard shaft – spiral bevel gear

Steering: vertical axis, counterclockwise

Installation method: fix racks or intensify bracket

Propeller configuration counterclockwise: three blade or two blade anti-wind

Trim and tilt system :manual tilt

Transmission system:centrifugal clutch

Lubrication method: splash

Lubricating oil: standard hyperboloid gear oil

Reduction ratio:22:15

Built-in fuel tank volume:1.0L

Oil(engine oil) tank volume:0.6L

Packing dimension: 96 x 50 x 38cm

Weight: 29.0kg

Pay attention not to test the motor on the ashore but in the water.

NOTE:

1.Add gasoline and engine oil to the box accordingly. (a box to add gasoline and a box to add engine oil) Don’t mix the gasoline with engine oil.

2.The motor couldn’t reach the reverse gear.

3.The propeller and the bottom shaft not installed onto the motor when you receive. It’s easy to install.

Features
▪ The mount has 4 locking positions which could locks the motor securely in place and fits nearly any outboard motor (refer to the model number of HP rating and capacity);
▪ Each mount has 10.5″ of vertical lift fits both short shaft and long shaft outboard motors;
▪ Fits most style of 2-stroke outboard motors; not recommended for 4-Stroke motors.

Specifications
▪ Motor Pad Size : 10-1/4″(tall) x 8″(wide) x 1/16″(thickness)
▪ Vertical Lift : 10.5″
▪ Mounting Bracket Size : 5-3/4″ wide by 4-3/8″
▪ Weight Capacity: 110 lbs
Note
▪ Manual measurement, error 1-3cm, depending on the actual situation, please understand;
▪ Please be careful of the sharp edge when you install;
▪ If not 100% completely satisfied with our item, simply contact us to request a refund or exchange. 3 month money back/replacement guarantee, 24 months product defect free replacement warranty.

Product Description

1.Features

Model:48V 4.0 Jet Pump

Rated power:1000W

Starting system:Accelerated start

Motor type:Brush-less motor

Rated Voltage:48V

Rated current:21A

Control system:Tiller control

Max speed:15km/h

Overall L*W*H:365*220*920mm

N.W/G.W:10/11kgs

Packing size:95*42*29cm

Transom plate height:420mm

Battery model recommendation:30~120A safe storage

Battery,maximum power sustainable 2~8hours

(1) Strong power, Low energy consumption and Long service life because of the pure copper core brushless motor

(2)  A muffler works for the motor to decrease the noise.

(3) Omni-directional rotary joystick

(4) Anti-winding function when Increase the thickening of the propeller

(5) Aluminum alloy suspension bracket: 90° rotatable bracket, more stable and durable.

(6) Easy to install, the motor can be mounted on board without any tools

 Be as one with the silent world with this Genuine outboard motor. With huge thrust, a super-strong shaft and speed control, it will put the bait just where it needs to be without the fish ever knowing you’re there.

With super-low power consumption, the Genuine gets the most out of your 48V battery. Suitable for small water crafts such as inflatable boats, canoes and aluminum fishing boats, this item employs a jet pump as propeller, giving you performance far superior to other blade designs whilst also keeping the weeds away. Simply twist the handle and sneak up on the fish at the optimal speed.

2. Application area

Used in fishing, aquaculture, outdoor adventure, etc.

Features
(1) Strong power, Low energy consumption and Long service life because of the pure copper core brushless motor
(2) A muffler works for the motor to decrease the noise.
(3) Omni-directional rotary joystick
(4) Anti-winding function when Increase the thickening of the propeller
(5) Aluminum alloy suspension bracket: 90° rotatable bracket, more stable and durable.
(6) Easy to install, the motor can be mounted on board without any tools
Be as one with the silent world with this Genuine outboard motor. With huge thrust, a super-strong shaft and speed control, it will put the bait just where it needs to be without the fish ever knowing you’re there.
With super-low power consumption, the Genuine gets the most out of your 48V battery. Suitable for small water crafts such as inflatable boats, canoes and aluminum fishing boats, Your Genuine employs a CAD-designed triple-blade propeller, giving you performance far superior to other blade designs whilst also keeping the weeds away. Simply twist the handle and sneak up on the fish at the optimal speed.

Application area
Used in fishing, aquaculture, outdoor adventure, etc.

Model: DD-48V-1000W
Shaft length: 508mm(Suitable for ships with stern plate 45-55 cm)
Use voltage:48V
Current:18A
No-load speed:3000 rpm
Recommended battery: 48V 100A/3-4H
product weight:10.5KG
power:1000W
speed:15 KM /H
Gross weight / net weight:10.5KG/13KG
Start key:NO
Reverse gear:NO

Package Include:
· 1x Trolling Motor
· 1x Operation Manual

About certification: We can only provide CE certification, there is no other certification can be provided, thanks for your understanding.

Cylinder Scoring is a serious damage,which caused by improper use and will cost you a lot of money to repair the motor.

Don’t do the following will avoid cylinder Scoring:
1. Start the motor on bank
2. Use the motor when it stop coming out of water
3. It can be marched with inflatable boats, rubber boats or fishing boats
Even if you want test the motor, it should be done in the river!

Specification:
Type: 4 stroke 4 horsepower
Max speed: 4500~5500rpm
Capacity: 52cc
Transmission ratio: 2.08 (27:13)
The number of cylinders: 1
Maximum speed: 4000-5000
Maximum power: 2.8 kW /4 HP
Shift position: Clutch control
Package volume: 95x40x30 cm
Ignition system: CDI
Cooling system: Air cooling
Starting method: Manual start
Refueling: No. 93 gasoline
Propeller size: 7 1/4X7-A
The maximum fuel consumption: 1.4 liters / hour
Recommended Lubricant:4 stroke lubricating oil
Short shaft: 40cm
Mixing ratio: Pure gasoline
Trim and tilt system: Manual Tilt
Cooling system: Air cooling
Start-In-Gear protection/clutch feature prohibits prop rotation while idling
Features 360 degree steering rotation for reverse without gear shifting

All the products are shipped from US warehouse(CA or NJ)
All the products are shipped from US warehouse(CA or NJ)

★ Product specifications:

Model:48V 4.0 JET PUMP

Rated power:1000W

Starting system:Accelerated start

Motor type:Brush-less motor

Rated Voltage:48V

rated current:21A

Control system:Tiller control

Max speed:15km/h

Overall L*W*H:365*220*920mm

N.W/G.W:10/11kgs

Packing size:95*42*29cm

Transom plate height:420mm

Battery model recommendation:30~120A safe storage battery,maximum power sustainable 2~8hours

Features:
Features 360 degree steering rotation for reverse.
Lift/Tilt feature for shallow water operation and convenience
Standard CDI ignition system for easy starting and improved performance
Vertical mount engine design for increased power, performance and durability
Twist grip throttle handle and engine stop button for improved response
Superior outboard anti corrosion system and anodes for increased durability

Technical Data :
Engine type:    Single cylinder
Stroke:  2 stroke
Maximum output: 4 HP
Cooling System :  air-cooled
Engine model:    1E48F
Displacement :    63cc
Max. Power:    2.3kw/8000rpm
Start system:    Recoil start(manual start)
Ignition system:    CDI
Mixing ratio(Gasoline:oil)    25:1
Gasoline tank capacity:    1.2L
Idle speed:    3000rpm
Gear ratio:    2.08(27/13)
Propeller diameter:    18cm
Propeller options:    7-1/4*5-A inch
Running speed:    15–18km/h

Instructions On Refueling:
The gasoline is highly flammable and explosive:
1.Shut off the engine of your outboard engine before refueling.
2.Use unleaded gasoline only. Use 2 stroke engine oil.
3.The mixing ratio of gasoline and oil is 25:1. Mix the gasoline and oil and shake well.
4.Don’t spill the gasoline.Use clean cloth wipe off the spilled gasoline.

Notice:
For this 2 stroke outboard motor, you need to use gasoline and oil mixed fuel, the gasoline and oil mixing ratio is 25:1.
Please use 93# gasoline and 2 stroke engine oil.

Engine：air cooled Overall length:92CM Overall wideth:36.5cm Overall height:22cm Transom height:42cm Short Shaft:44cm Full throttle perating range:4000-5000r/min Maximum output:2.5kw(3.5HP) Speed:11km/h Type:2-stroke Ignition system: CDI system Starting system: Manual start Staring carburetion system: Choke start Propeller mark:7-1/45-A(inch) The engine and the propeller ratio:2:1 Recommended fuel: Regular unleaded gasoline Fuel to oil ratio: 25:1 （Please be suject to this version, and disregard the manual about this point） Gear ratio: 27/13 Maximum speed: 11km / h Built-in fuel tank: 1.3L Fuel consumption per hour: 1.4L

The HelmsMate Tiller Extension Handle allows you to sit away from your motor while maintaining full steering and throttle control.  Slides directly onto the tiller handle of gas and electric trolling motors.  Designed for trolling speeds only.

HelmsMate Features

• Clamps directly to the tiller handle for full steering and throttle control
• Fits most gas and electric trolling motors up to 15 HP
• Universal joint model allows for easy push/pull steering  (remove when not applicable)
• Extendable models incorporate a stainless snap button to withstand the twisting motion from shift and throttle control (remove when not applicable)
• Anodized aluminum tube, marine grade hardware, unbreakable nylon clamp
• Made in USA.  Lifetime warranty

Instructions for Use

Loosen thumb screws on the HelmsMate clamp, slide onto your tiller handle and tighten the thumb screws.  For larger diameter tiller handles remove the rubber sleeve, pull open the clamp at the flanges and slide onto the tiller handle.  For smaller tiller handles request the extra rubber sleeve that is available.  Once clamped to your motor check to make sure you have clear access to the kill button on the motor.

For extendable models, adjust the length by pressing the snap button and sliding the inner handle to the desired length.

.

Trailering puts a strain on your transom. The weight of your motor, high-speed trailering, potholes, bumps. . . simple physics says it’s not good for your boat. Extreme Max wants to take that weight off your transom’s “shoulders”. It distributes the weight of your motor to the rest of your boat, eliminating strain on your transom and protecting your investment. We’ve done the math and calculated how to best support your transom and distribute your motor’s weight. We’ve done the heavy mental lifting to give you unmatched, optimal weight distribution. Easy installation. Easy removal. Perfect fit for all trailers. Plated finish resists corrosion. Two-year replacement warranty. Go ahead, take a load off. . . your transom.
