NutriChef Model : PKSTIND48

Dual Zone Induction Ceramic Cooktop

Electric Induction Cooktop – Digital Kitchen Countertop Hot Plate Burners with Adjustable Temperature Control, Ceramic Glass (Dual Zone)

Features:

Technical Specs:

The NutriChef Dual Induction Cooktop – Double Countertop Burner with Digital Display – Ceramic Tempered Glass Induction Cooktop – Simple Electric Plug-in Flameless Burner Design – (2) Circular Top Panel Heating Zones – Independent Configurable Temperature Zone Setting – High-Powered Heating Elements – Quickly Heats for Instant Food Prep – Digital LCD Display Screens – Sensor Touch Controls – Countdown Timer Setting – Stain-Resistant & Easy-to-Clean – Compact & Space-Saving Style – Energy Efficient: Low Power Consumption – Safety Certified & Approved – For Use with All of Your Steel Kitchen Cookware, Pots & Pans – Technical Specs: – Dual Heating Element Power: 1800 Watt x 2.

Note: in order to use This and any other induction cooktops, you need to have the right kind of cookware. The energy produced by the Duxtop is directly supplied to the cooking vessel by a magnetic field. Duxtop detects the size of the cookware base and automatically adjust so that very little energy is wasted. Duxtop Induction burner is fast and safe to use, easy to clean. This versatile cooktop is great for entertaining; use it as a stylish, elegant centerpiece on the table, for outdoor parties and in the kitchen as an extra cooking zone. 1) Duxtop Induction Cooktop uses 120 volts, 15 Amps of electricity – standard in all homes. Basically you plug the cooktop into any standard household outlet. This makes it very convenient to move around. 2) lightweight and compact for easy handling and storage. 3) built-in Count-down digital timer with 1 min increments up to 170 minutes4) digital control panel5) 10 power levels from 200-1800Watts. 6) 10 temperature range from 140 Degree Fahrenheit to 460 Degree Fahrenheit. 7) compatible with Duxtop and other induction ready cookware such as stainless steel with a magnetic bottom, or cast iron. Check with your cookware manufacturer If it works on induction range. 8) the auto-pan detection will turn off heating when cookware removed from the cooktop and shut the unit automatically after 60 seconds if no cookware is detected. 9) low and high voltage warning system10) equipped with diagnostic error message system. 11) ETL approved. Duxtop Induction stove is easy to install (plug in) and easy to use. These cooktops are a snap to clean. Simply wipe clean with a damp cloth when the cooktop is cool after cooking.

The energy produced by the Duxtop Cooktop is supplied directly to the cooking vessel by a magnetic field. The cooktop automatically adjusts the magnetic field generated to the size of the cookware base so that very little energy is wasted during the cooking process. The Duxtop Induction Cooktop is safe to use, fast and easy to clean. This versatile and feature rich cooktop is great for entertaining; use it as a stylish centerpiece on the table for outdoor parties or in the kitchen as an extra cooking zone.

1) The Duxtop 9600LS Induction Cooktop uses 120 volts, 15 amps of electricity – standard in all homes. Just plug the cooktop into any standard household outlet. This makes it very convenient to move around.

2) Lightweight and compact for easy handling and storage.

3) Built-in count-down digital timer with 1 min increments up to 10 hours.

4) Digital LCD Sensor-Touch control panel.

5) 20 power levels from 100-1800 Watts.

6) 20 temperature ranges from 100°F to 460°F.

7) Cord length is 5 ft.

8) Compatible with induction ready cookware such as cast aluminum enameled iron and steel, stainless steel with a magnetic bottom, or cast iron.

9) The auto-pan detection feature will turn off heating when cookware is removed from the cooktop and shut the unit off automatically after 60 seconds if no cookware or incorrect cookware is detected.

10) Child Safety Lock system.

11) Low and high voltage warning system.

12) Equipped with diagnostic error message system.

13) ETL approved.

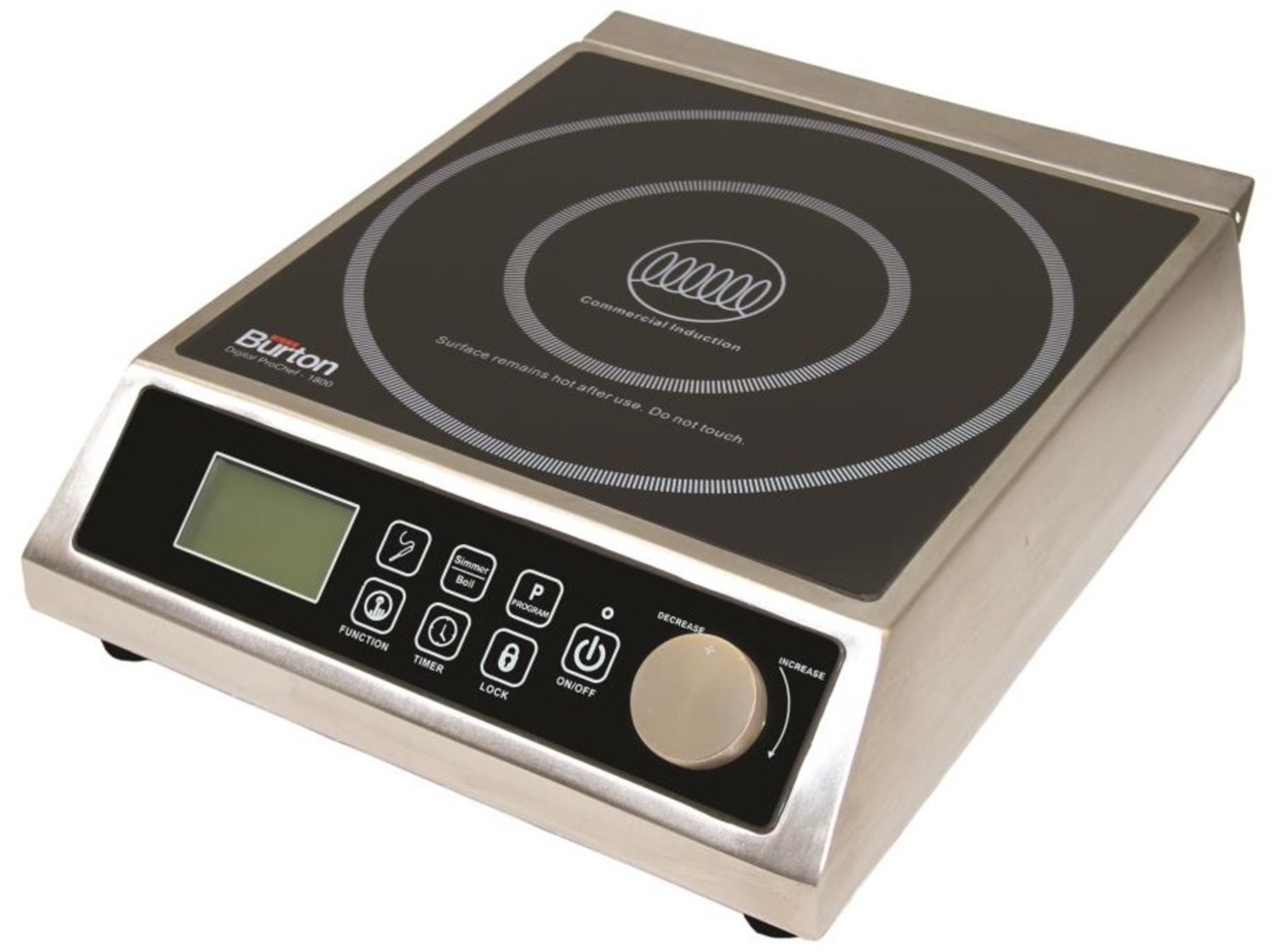

Max burton pro chef commercial retail box.Great for induction. 1800 Watts, touch screen controls, LCD display, control knob, timer, function lock, one-touch simmer and boil, cookware detection, overheat sensor, and auto shut-off. Includes a detachable temperature probe.

Suitable for heat-resistant appliances such as iron, aluminum, ceramics, casseroles, and heat-resistant glass.
Our electric ceramic stoves use lightwave heat transfer, so the choice of using the right pot can heat transfer more efficient.
We recommend selecting a flat bottom and a non-reflective pot as shown in the figure below.
Best effect 7.08-10.24inch flat bottom and dark surface

Use and characteristics
We are specialized in infrared induction cooker, new product for
kitchen use of family cooking needed.
Mainly characteristics as following:
High-tech, infrared heating: with using infrared light heat transfer,
without any electromagnetic radiation.
Available for heating function.

Environmental protection, it doesn’t have burning phenomenon, as well as without any bright fire and Carbon monoxide.
Multiple security function to ensure the safety.
Using microcomputer control.
Automatic adjustment of the fire temperature easy to operation.
Introduce advanced Hardness Micro plate. Easy to clean and durable. Safety device.
Furnace overheat protection : when the furnace temperature reach 650℃，stop heating
Inside machine overheat protection: when the inside machine is get to 100℃， stop heating.
Over voltage protection: when the voltage higher than 180V, and it will be stop heating.
Low voltage protection: when the voltage less than 70V,protection for stop heating.

Fault Code: E2:The input voltage is too high or the circuit is faulty. About 160V-170V. E4: Thermonuclear disconnect circuit, circuit board short circuit, that is circuit failure. E5:Radiator thermistor short circuit , and the fan doesn’t work inside temperature over high it about 90℃. Circuit failure.E6 Radiator thermistor

Digital display and push-button control
Wattage: 3500W, Voltage: 220V / 50~60Hz
400W ~3500W 13 power level control;Continue working 24 hours
Temperature settings from 140 to 464 degrees F; overheat sensor; auto shut-off
Infineon IGBT and German crystallite panel, stable performance durable
Energy saving and high efficiency International patent double induction coil, heating strong and uniform, big heating zone
Temperature sensor and temperature switch double protection, to better protect the operation of IGBT and fault self – diagnosis function.
Operation and instructions:
1)Connecting to power, press “On/Off ” button once, the power light flashes and have a “Di” sound, then the cooktop enters standby state.
2)Press the” watt” button once, the pre-set watt is “1800W”, selected, the cooktop begins to work.
3)Press ” arrow” button to adjust the watt from” 400W to 3500W”, total 13 power level: 400, 600, 800, 1000, 1200, 1500, 1800,2100,2400,2700,3000, 3300, 3500(watt), you can base on your cooking need to select the watt.
4)Press” TEMP” button once, the pre-set temprature is 130℃, and you can press”arrow” button to select the temprature from 60℃ to 240℃, total 13 temprature level:60,80,100,120,130,140,150,160,170,180,200,220,240(℃)
5)Timer, press”TIMER” button once, display shows:”0:00″(hour: minute), use” arrow” button to adjust the time, the max time”23:59″, when the timer is time out, the cooktop transfers to standby state automaticly.
6)After finish cooking, press”On/Off” button to make the cooktop transfer standby state.
7) Waitting a minutes, pull out power plug.
This induction cooktop are not like others in the industry, with simple and intuitive controls and power maximizing technology, you will cooking with gourmet results with speed previously unattainable.
This induction smooth ceramic glass cooking surface is also the most modern looking dual cooktop on the market.

NuWave’s Precision Induction Cooktop Flex offers precise temperature control wit hthe simple press of a button. You can adjust the cooking temperature in 10 Degree increments between 100 Degree and 500 DegreeF for a total of 45 precise temperature settings. The PIC’s induction technology heats the cookware directly, no the surroundign area, making it incredible safe. With no open flame or hot coil, there’s virtually no risk of fire. Utilizing 1300 watts of power, the lightweight and portable PIC allows you to cook gourmet meals virtually anywhere. It even offers state-of-the-art programming technology with 100 hours of memory that allow you to program your favorite cooking procedures. A 9″ hard anodized Duralon Healthy Ceramic Non-Stick Fry Pan is included. This versatile pan is the perfect complement to the NuWave PIC Flex, allowing you to cook your favorite foods without adding any unhealthy fat or oil.
